PRODUCT DOCUMENTATION

Alienx Suite — modules, limits, and extensibility

What each part of the app does, and what you get on Community vs Pro. Compare limits in the table below, or jump to a module for details and screenshots.

How to read this page
  • Community — free, runs locally, no telemetry. Full toolkit with the limits listed below.
  • Pro — one-time license (Kickstarter or post-campaign). Higher limits and extras marked [PRO].
  • Already backed Pro? Open Settings → License, paste your key, and activate. Pro stays available offline for up to 7 days without internet.
Alienx Suite desktop application overview
Desktop shell — Intercept, Forge, Blitz, Recon, Agents, and sidebar modules

Community vs Pro

Community is built for real engagements — these are the main caps. Pro removes them and unlocks the rows marked [PRO].

AreaCommunityPro [PRO]
Active projectsUp to 2No enforced cap
Intercept history (per project)10,000 entries (oldest dropped)No cap
Blitz concurrency1 threadUp to 64 (UI range)
Blitz requests per jobMax 500 iterationsNo license cap
Recon — Dir bust threads8 threads maxUp to 64 (UI range)
Recon — Dir bust paths per job5,000 paths maxNo path cap
Recon — Active crawl[PRO]Not availableAuthorized active scan with scope + confirmation
AiLienX agent sessions3 sessions per dayUnlimited
AiLienX tool rounds per turn6 rounds12 rounds
Enabled plugins1 at a timeNo cap
Local HTTP API60 requests / minuteNo local rate limit
Managed OOB (Interactsh via license API)[PRO]Not availableToken from api.alienxsuite.com
Desktop MCP — input automation[PRO]Read-only tools (screenshots, window list, …)Mouse, keyboard, spawn, focus, SendSAS, …

Modules

Intercept[PRO]HTTPS-capable intercepting proxy with MITM CA, traffic history grid, inspector (request/response/preview), path map sidebar, and Rhai filter plugins on history rows.ForgeManual HTTP client (Repeater): edit raw requests, optional connect target, TLS SNI override, HTTP/2 ALPN mode, Content-Length fix, and response raw/preview tabs.TransformEncoder/decoder utilities for inspecting and mutating payloads outside the proxy hot path. Route-map actions can load a captured request here.Blitz[PRO]Automated fuzzing with §marker§ templates. Attack types: Sniper, Battering Ram, Pitchfork, and Cluster Bomb. Optional connect target (host or host:port) without altering raw HTTP.OOB[PRO]Out-of-band interaction tracking. Replace §OOB§ placeholders in Blitz/Forge templates. Background polling hub logs interactions in-app.Recon[PRO]Passive findings from proxied traffic, route map tree (host/path aggregation), Dir bust, and optional authorized active crawl. Findings stored per project in SQLite.Agents & AiLienX[PRO]Multi-role agent runtime with BYOK LLM profiles. Built-in roles plus skill plugins. AiLienX (`suite.ailienx`) orchestrates tools against project scope with audit events.Chat & OperationsChat tab: LLM sessions scoped to the current project (separate from tool-using Agents). Operations tab surfaces long-running jobs and audit-oriented workflows.Projects, WebSockets & Vulnerability intel[PRO]Project switcher isolates traffic, findings, agents, and settings. WebSockets module tracks upgraded connections. Vulnerability intel queries external sources (NVD, CISA KEV, EPSS, searchsploit) when configured.Integrations & Match & ReplaceConfigure upstream proxy, MCP server paths (including desktop-ui-hook), and Match & Replace rules applied on the intercept hot path.Plugins (Rhai)[PRO]Local plugins: manifest JSON + Rhai scripts under `plugins/{id}/`. Kinds: Filter, Proxy, Ui, Active. Permissions gate log, headers, body, message mutation, desktop MCP, and Interactsh.Desktop MCP[PRO]Native stdio MCP client for desktop-ui-hook-mcp. Used by AiLienX tools, Local API ops, and Rhai active plugins (with DesktopUi permission).

Intercept

HTTPS-capable intercepting proxy with MITM CA, traffic history grid, inspector (request/response/preview), path map sidebar, and Rhai filter plugins on history rows.

Community

  • Start/stop proxy, export/install CA, proxied browser launch
  • Traffic history with SQL + plugin hybrid filtering
  • Inspector: copy raw, send selection to Forge, response preview modes
  • History capped at 10,000 entries per project (oldest rows dropped)

Pro [PRO]

  • Removes the 10,000-entry history cap per project

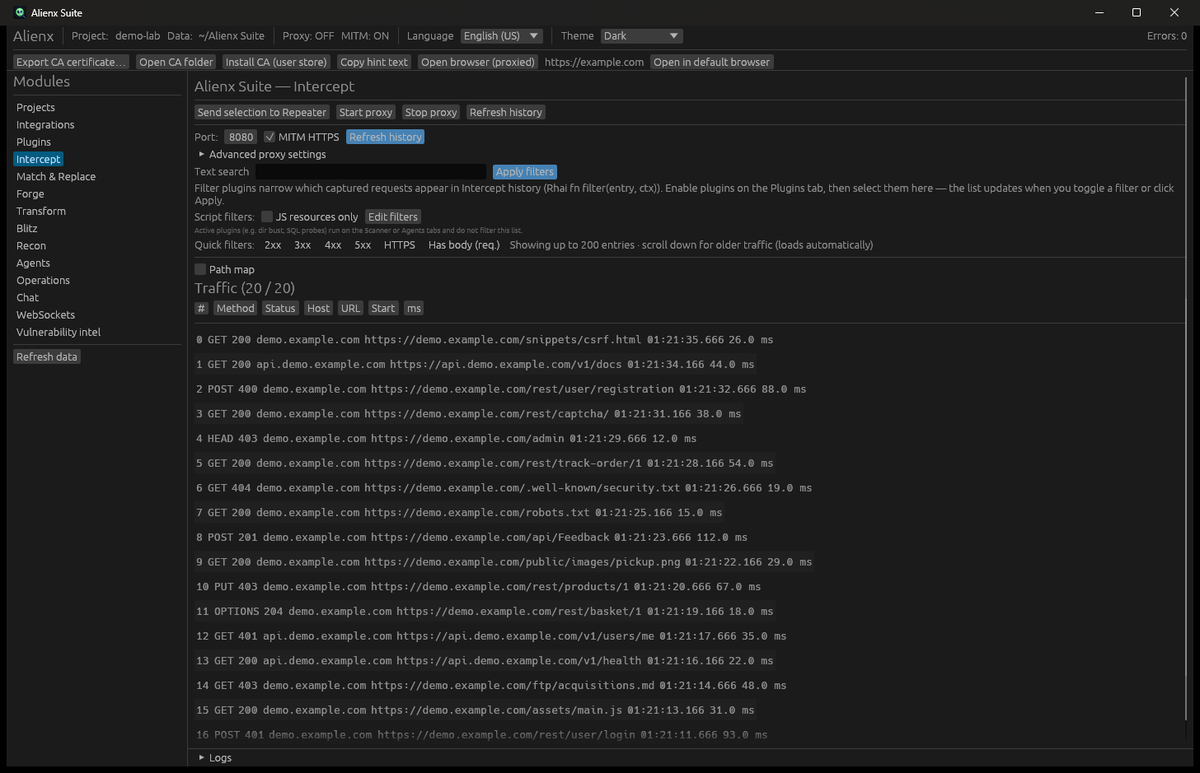

Intercept module showing proxied HTTP traffic history
Intercept — traffic history and inspector

Forge

Manual HTTP client (Repeater): edit raw requests, optional connect target, TLS SNI override, HTTP/2 ALPN mode, Content-Length fix, and response raw/preview tabs.

Community

  • Send arbitrary HTTP/1-style requests through the suite transport stack
  • Persist Repeater outbound settings (TLS SNI, HTTP/2) per instance
  • Receive synthesized HTTP/1-shaped responses when using HTTP/2

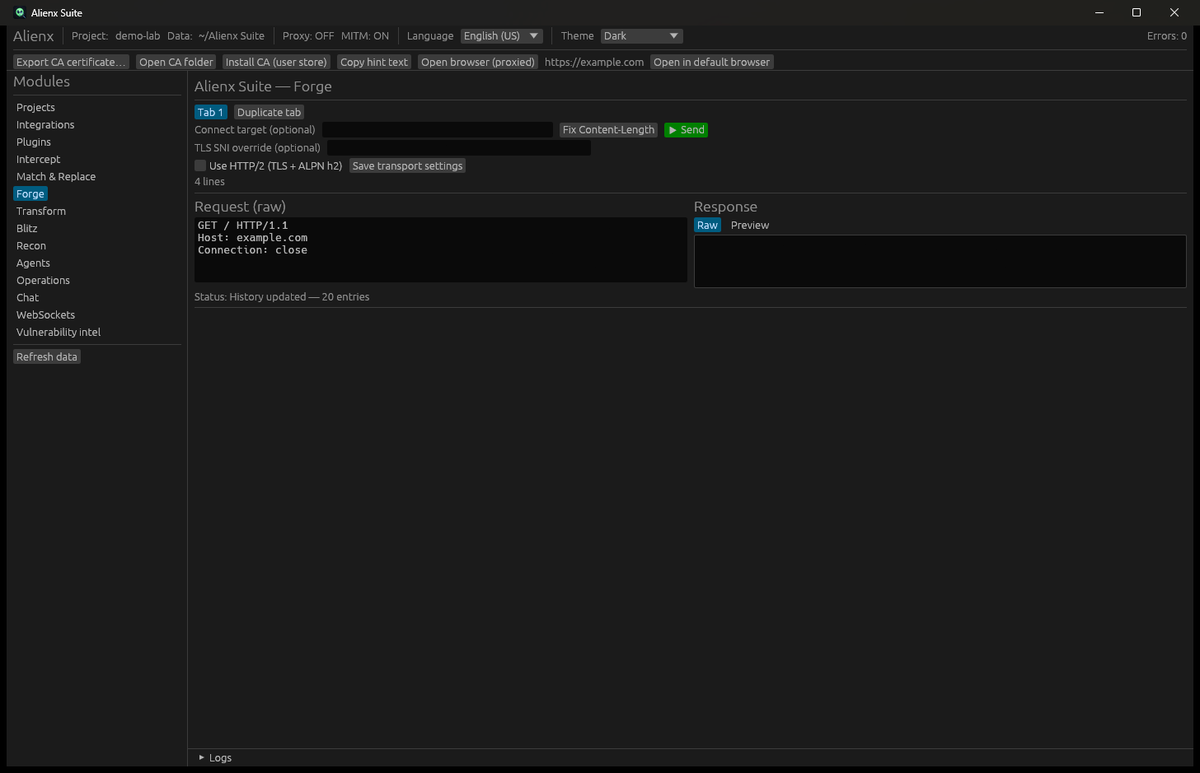

Forge module with raw HTTP request editor
Forge — raw request editor and response pane

Transform

Encoder/decoder utilities for inspecting and mutating payloads outside the proxy hot path. Route-map actions can load a captured request here.

Community

  • Standard encode/decode workflows tied to captured traffic

Blitz

Automated fuzzing with §marker§ templates. Attack types: Sniper, Battering Ram, Pitchfork, and Cluster Bomb. Optional connect target (host or host:port) without altering raw HTTP.

Community

  • 1 concurrent thread per job
  • Jobs truncated to 500 requests maximum
  • Progress streaming and per-row results (status, length, timing, anomalies)

Pro [PRO]

  • Concurrency up to 64 (same UI range as Pro; Community capped at 1)
  • No 500-request job truncation from license enforcement

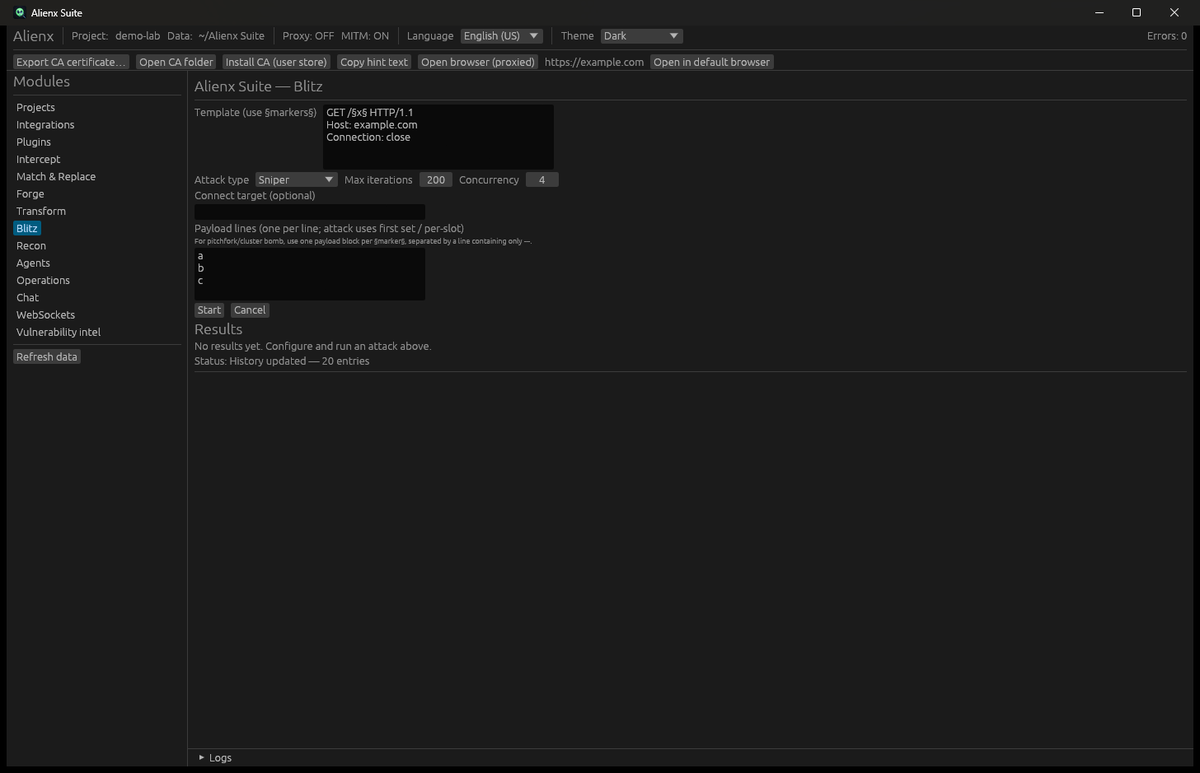

Blitz fuzzing module with payload sets and results grid
Blitz — template fuzzing and results

OOB

Out-of-band interaction tracking. Replace §OOB§ placeholders in Blitz/Forge templates. Background polling hub logs interactions in-app.

Community

  • Custom mode: supply your own Interactsh-compatible token and server
  • Transparent interaction log while polling is configured

Pro [PRO]

  • Managed Pro mode: OOB token fetched from the license API (requires valid Pro JWT)
  • Primary server defaults to the Alienx-managed Interactsh endpoint

Recon

Passive findings from proxied traffic, route map tree (host/path aggregation), Dir bust, and optional authorized active crawl. Findings stored per project in SQLite.

Community

  • Passive scan over existing traffic rows (does not capture HTTP by itself)
  • Route map: expand hosts/paths, open in history, send to Forge, Dir bust, Chat, Agents
  • Dir bust capped at 8 threads and 5,000 paths per job

Pro [PRO]

  • Active crawl with seed URL, scope host, max pages, delay, and authorization checkbox
  • Rhai active-scan plugins (`fn scan(ctx, config)`) via the active scanner pipeline
  • Dir bust thread/path caps removed

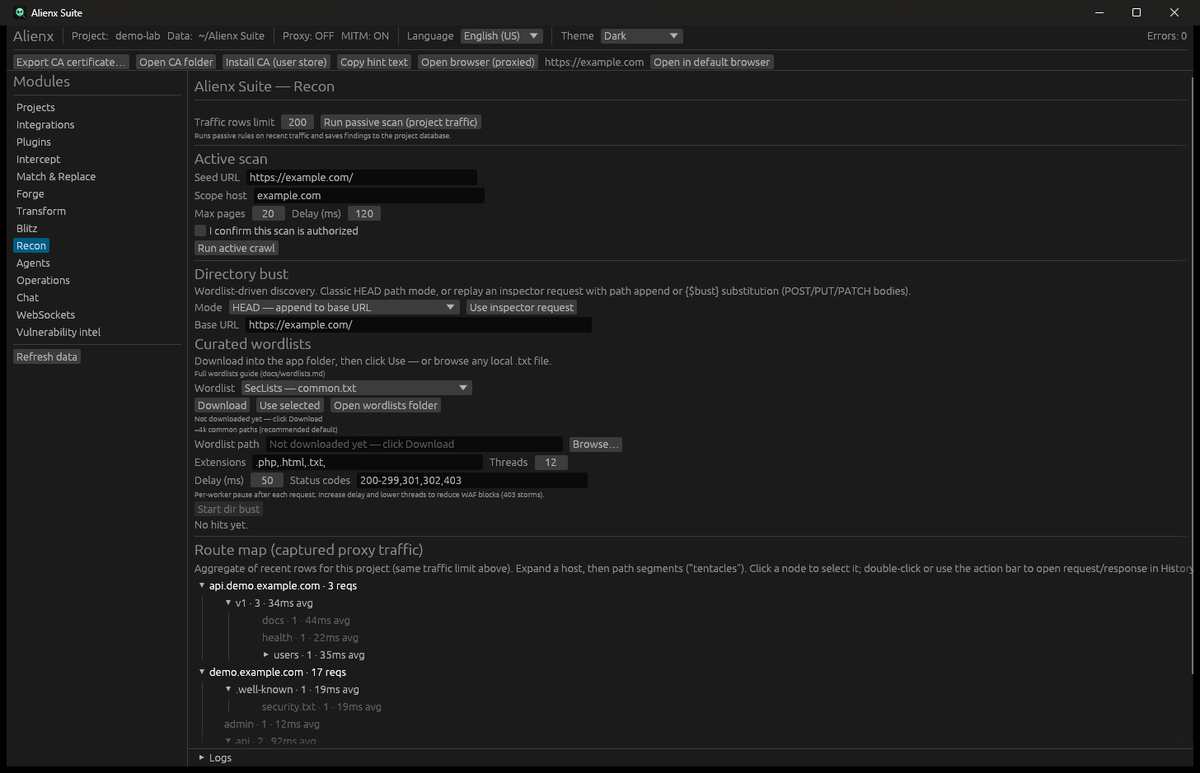

Recon module with route map and findings
Recon — route map, passive findings, and scan controls

Agents & AiLienX

Multi-role agent runtime with BYOK LLM profiles. Built-in roles plus skill plugins. AiLienX (`suite.ailienx`) orchestrates tools against project scope with audit events.

Community

  • Start agent sessions with role ID, objective, and LLM profile
  • 3 AiLienX sessions per calendar day
  • 6 tool-call rounds per AiLienX turn
  • Read-only desktop MCP tools available to agents

Pro [PRO]

  • Unlimited agent sessions per day
  • 12 tool-call rounds per AiLienX turn
  • Pro-gated agent tools: desktop input automation, `playwright_run`
  • Pro-first skill roles (e.g. blind SQLi, command injection) remain usable on Community with reduced tooling

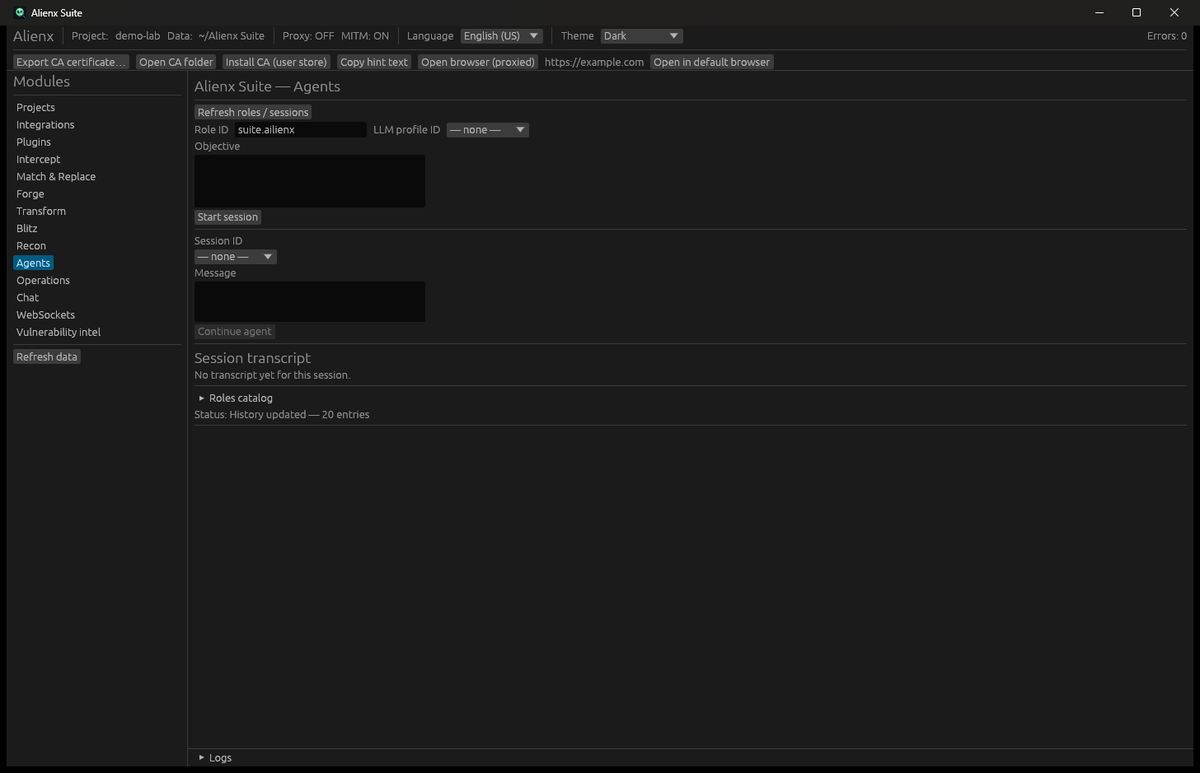

Agents module with AiLienX session and role catalog
Agents — role catalog, sessions, and AiLienX transcript

Also see: mcp, plugins

Chat & Operations

Chat tab: LLM sessions scoped to the current project (separate from tool-using Agents). Operations tab surfaces long-running jobs and audit-oriented workflows.

Community

  • Chat: create sessions, pick LLM profile, send messages
  • Route map can prefill Chat or Agent messages with captured URL context

Projects, WebSockets & Vulnerability intel

Project switcher isolates traffic, findings, agents, and settings. WebSockets module tracks upgraded connections. Vulnerability intel queries external sources (NVD, CISA KEV, EPSS, searchsploit) when configured.

Community

  • Up to 2 active projects
  • WebSockets traffic inspection per project
  • Vuln intel: CVE lookup, KEV, EPSS, Exploit-DB via searchsploit; optional ALIENX_VULNDB_URL

Pro [PRO]

  • Unlimited active projects

Integrations & Match & Replace

Configure upstream proxy, MCP server paths (including desktop-ui-hook), and Match & Replace rules applied on the intercept hot path.

Community

  • Proxy upstream settings and suite-wide Match & Replace
  • MCP stdio client shared by agents, Local API, and Rhai active plugins

Plugins (Rhai)

Local plugins: manifest JSON + Rhai scripts under `plugins/{id}/`. Kinds: Filter, Proxy, Ui, Active. Permissions gate log, headers, body, message mutation, desktop MCP, and Interactsh.

Community

  • Filter plugins: `fn filter(entry, ctx)` → `{ keep, score, tag }` on history rows
  • Proxy hooks: `fn on_request(msg, ctx)` / `fn on_response(msg, ctx)`
  • Only 1 enabled plugin at a time

Pro [PRO]

  • No limit on simultaneously enabled plugins
  • Active scan scripts participate in the Pro-only active scanner pipeline

Also see: extensibility

Desktop MCP

Native stdio MCP client for desktop-ui-hook-mcp. Used by AiLienX tools, Local API ops, and Rhai active plugins (with DesktopUi permission).

Community

  • desktop_wait_ms, desktop_screen_info, desktop_screenshot_*
  • desktop_window_list, desktop_active_window, desktop_permissions_status
  • desktop_secure_desktop_detect / capture (Windows elevated)

Pro [PRO]

  • desktop_mouse_*, desktop_keyboard_*, desktop_spawn, desktop_kill_session
  • desktop_window_focus_*, desktop_send_sas, desktop_secure_desktop_click
  • Aggregated gates: screen_control, mcp_screen_hook, playwright_run (agent tool)

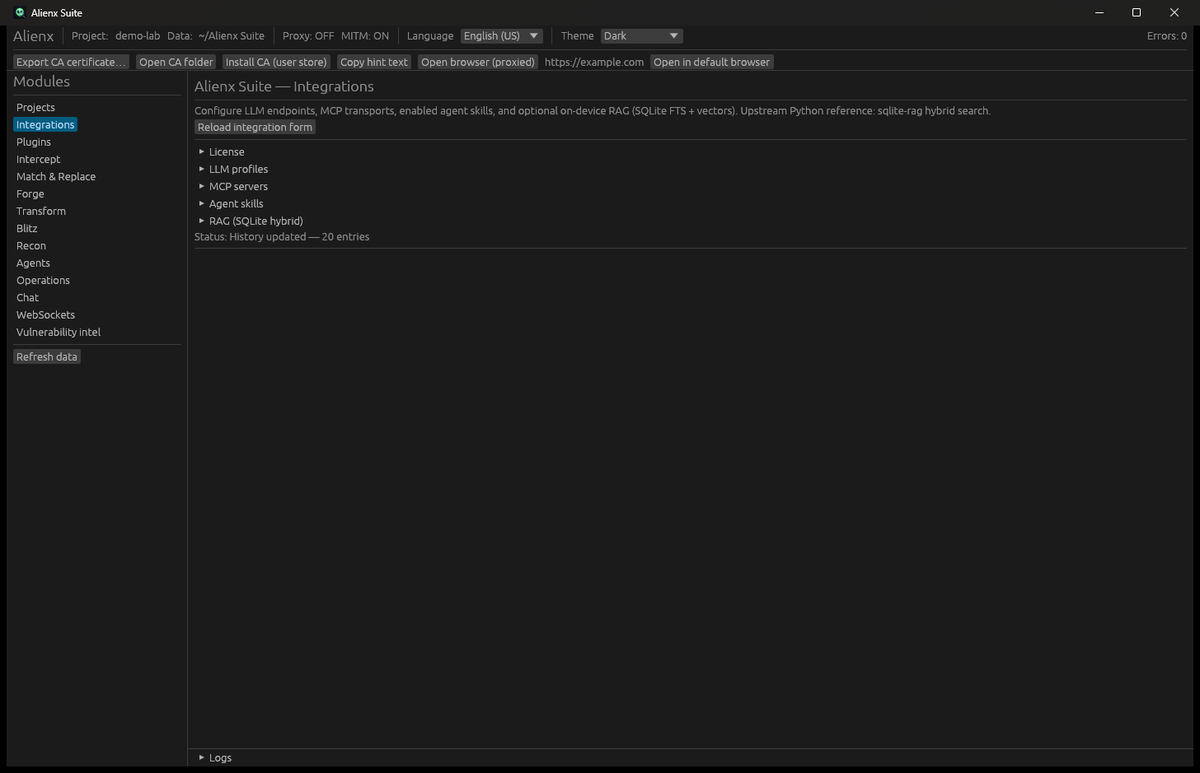

Integrations view showing MCP server configuration
MCP integration — desktop-ui-hook server wiring

Local API

The desktop app exposes a local HTTP API (used by scripts and external tooling). Community installs rate-limit mutating routes to 60 requests per minute; Pro removes that cap. Agent session creation via the API follows the same daily session limits as the UI.

  • Health checks and read-only routes work on both tiers.
  • Blitz, Dir bust, active scans, and agent sessions follow the same Community vs Pro limits as the UI — the app tells you when you need to upgrade.

Extension API (Rhai)

Plugins live under your app data directory: plugins/{id}/manifest.json plus Rhai scripts referenced by hooks. The plugin editor ships inside the desktop app.

Filterplugins/{id}/filter.rhai
// Filter plugin — return #{ keep, score, tag }
fn filter(entry, ctx) {
    let ct = entry.content_type();
    if contains_ci(ct, "json") && entry.status_class() == 5 {
        ctx.log("5xx JSON response — keep for review");
        return #{ keep: true, score: 0.9, tag: "5xx-json" };
    }
    if entry.path().ends_with(".js") {
        return #{ keep: true, score: 1.0, tag: "js" };
    }
    #{ keep: false, score: 0.0, tag: "" }
}
Proxyplugins/{id}/proxy.rhai
// Proxy plugin — fn on_request(msg, ctx) / fn on_response(msg, ctx)
fn on_request(msg, ctx) {
    if contains_ci(msg.header("User-Agent"), "bot") {
        msg.set_header("X-Alienx-Audit", "proxy-hook");
    }
}

Script surfaces

  • Filter — TrafficEntry view, FilterContext.log, return #{ keep, score, tag }
  • Proxy — HttpMessage with permission-gated set_header, replace_body
  • Active [PRO] — fn scan(ctx, config) returns finding maps; ActiveContext exposes http_request, dir_bust_start, optional desktop_ui_call, interactsh_* when permissions allow
  • Ui — manifest kind for UI extensions (see plugin editor)

Pro-first agent skill roles [PRO]

These specialist roles run on Community with a smaller toolset. Full desktop automation and browser control require Pro.

  • Post-exploitation — privilege escalation
  • Network — Kerberoasting
  • Research — zero-day hypothesis
  • Web — blind time-based SQL injection
  • Web — command injection

License activation

  1. Purchase or receive a Pro key (Kickstarter backer, Stripe checkout, or team allocation).
  2. Open Settings → License, paste the key, and activate online.
  3. Your license is tied to one machine and refreshes automatically when you are online (about once a week).
  4. No internet for a while? Pro keeps working for up to 7 days offline, then reverts to Community until you connect again.
